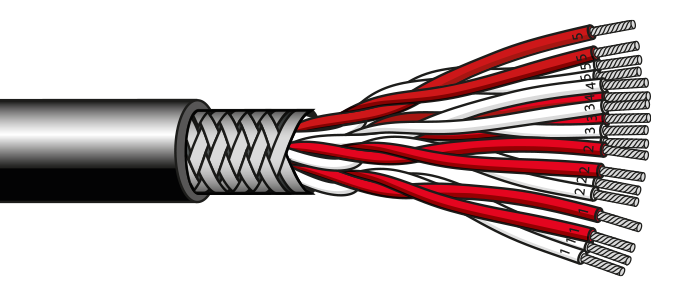

7/0.2mm PVC Insulated Multi Quad RTD Cable with Screen
These PVC insulated RTD cables are ideal for extending multiple 4-wire Pt100 sensors in a single cable. They are supplied in either 25, 50, 100 or 200 metre lengths and are available with five, ten or fifteen Quad cores of stranded 7/0.2mm copper conductors. Cores are HR PVC insulated, Quads bunched together and numbered with a tinned copper wire braid and overall HR PVC sheath.
- 5, 10 or 15 Quad cores of 7/0.2mm dia twisted conductors, HR PVC insulated
- Tinned copper braid with overall HR PVC sheath
- Temperature range: -30°C to +105°C
- Quad colour code : 2 cores red and 2 cores white (numbered Quads)
- Outer sheath colour: Black
- Available in a variety of lengths
- Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers
The following types are available:
