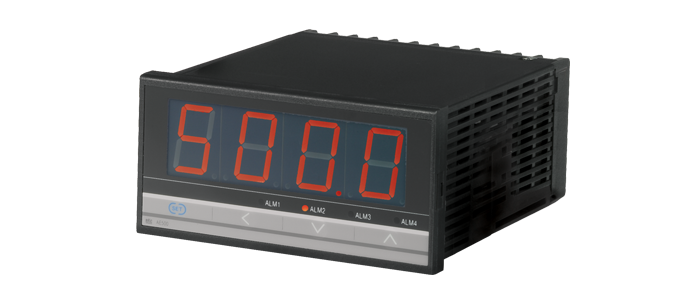

Panel Temperature Indicator with Alarms
This high performance temperature indicator provides a flexible solution for applications requiring accurate indication with up to four alarm outputs. The instruments are easy to configure and install and are available with either AC or DC power supplies. They have an input and can be configured by the user for thermocouple or resistance thermometer inputs and have up to four process alarms which can be specified and configured by the user
- Bright, easy-to-read LED display (20mm high)
- 1/8 DIN (48x96x100mm deep)
- Inputs: Thermocouple or Pt100
- 100-240 V AC or 24V AC/DC versions available
- 5 year warranty
Specifications:
Inputs: Thermocouple : K, J, R, S, B, E, T, N, U, L and C
RTD : Pt100
Accuracy:-
Thermocouple : ±(0.3% of reading + 1 digit) or ±2°C (4°F)
RTD: ±(0.3% of reading + 1 digit) or ±0.8°C (1.6°F)
Alarms: 4 points; Process High, Low
Output: Alarm 1, 2 : Relay output, Form A contact 250V AC 1A (resistive load),
Alarm 3, 4 : Relay output, Form A contact 250V AC 3A (resistive load)
Power Supply: 100 to 240V AC or 24V AC/DC
The following types are available:
